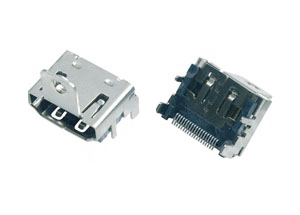

HDMI A Type << Back
GHDMAR20-19-KXXXXXX-XX
Product Specification：
Temperature：-20℃～85℃
Rated load：40V 0.5A
Contact resistance：≤30mΩ
Insulation resistance：≥1000MΩ
Dielectric strength：AC500V(0.5mA)/min
Insertion force：≤44.1N
Extraction force：4.9N～39.2N
Life test：10000 times
